Single Row Tapered Roller Bearings KOYO 32218JR Bearing is one kind of tapered roller bearing design . Its dimension is 90×160×42.5mm , weight is 3.5kg , the material are adopt high quality chrome steel , this design are separable . the bearing ring with the rollers and cage assembly can be separated from the other ring , so this kind of bearing are the same with single row cylindrical roller bearings .
The design of KOYO 32218JR Taper Roller Bearing allows for combinations of heavy radial and thrust loads with low to moderate speeds . This section covers only single row tapers although KOYO manufactures a full line of two and four row tapers as well . For more details on multiple row tapered roller bearings , please see the Rolling Mill section of this catalog or contact an KOYO representative . Metric designs function the same as their inch series cousins , the difference lies in the units of measure .
KOYO 32218JR Bearing metric tapers are standardly supplied with cup and cone together , while inch series bearings are available by the cup , cone , or cup and cone . The applications shown below are for either metric or inch bearings , with the equipment manufacturer choosing the preference of dimensional measurements . Metric tapers are usually found in equipment designed in Europe or Asia .
Taper Roller Bearings also have the other different design as follows
--Metric Single Row Taper Roller Bearings
--Inch Single Row Tapered Roller Bearings
--Double Row Taper Roller Bearings
--Four Row Taper Roller Bearings
--Hub bearing units for trucks
Taper Roller Bearings KOYO 32218JR Bearing
| Principal dimensions | 90×160×42.5mm |
| Weight | 3.5kg |
| Basic dynamic load rating-C | 309kN |
| Basic static load rating-Co | 340kN |
| Fatigue load limit-Pu | 38kN |
| Reference speed | 3400 r/min |
| Limiting speed | 4000 r/min |
KOYO 32218JR bearing is Tapered roller bearing and commonly type and widely used in many application like the spindle of machine , it contains inner ring , outer ring,and steel cage , tapered roller bearing can carry radial and axial loads in both directions , KOYO 32218JR Taper roller bearings are particularly versatile and are simple in design , separable , KOYO 32218JR bearing suitable for high and middle high capacity , but low cost maintenance.as one of the biggest top quality bearing brand , Quality can be approved by the market .
Application Of Single Row Tapered Roller Bearings
■ Bow Thrusts on Ships
■ Speed Reducers
■ Transmissions
■ Sheaves
■ Conveyor and Transfer Equipment
■ Coupling Equipment
■ Construction Equipment
■ Mining Equipment
■ Oil Field Equipment
■ Automotive Front and Rear Axles
■ Plastic Forming Equipment
■ Agriculture Equipment
■ Motorcycle Wheels
■ Pinion Shafts of Differential Gears
■ Drum Shafts
XRB is the China bearing manufacturer , exporter , supplier , it can supply KOYO 32218JR bearing , Our large quantity Single Row Tapered Roller Bearings Stock can meet your need with good quality and fast delivery, Also you can find FAG 32218 Bearing , the other type and brand tapered roller bearing . just like NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea,by Train are all avaiable . we asure we can ship high quality KOYO 32218JR bearing to your office at the first time .
Product Tags:
|
|

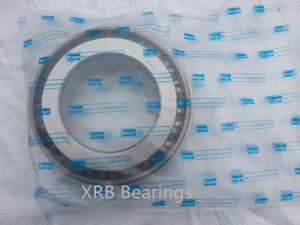

Tapered Roller Bearings KOYO 32218JR Bearing 90×160×42.5mm Used In Trailer AXLE Of IVECO And MERCEDES BENZ Images
|
